Specifications

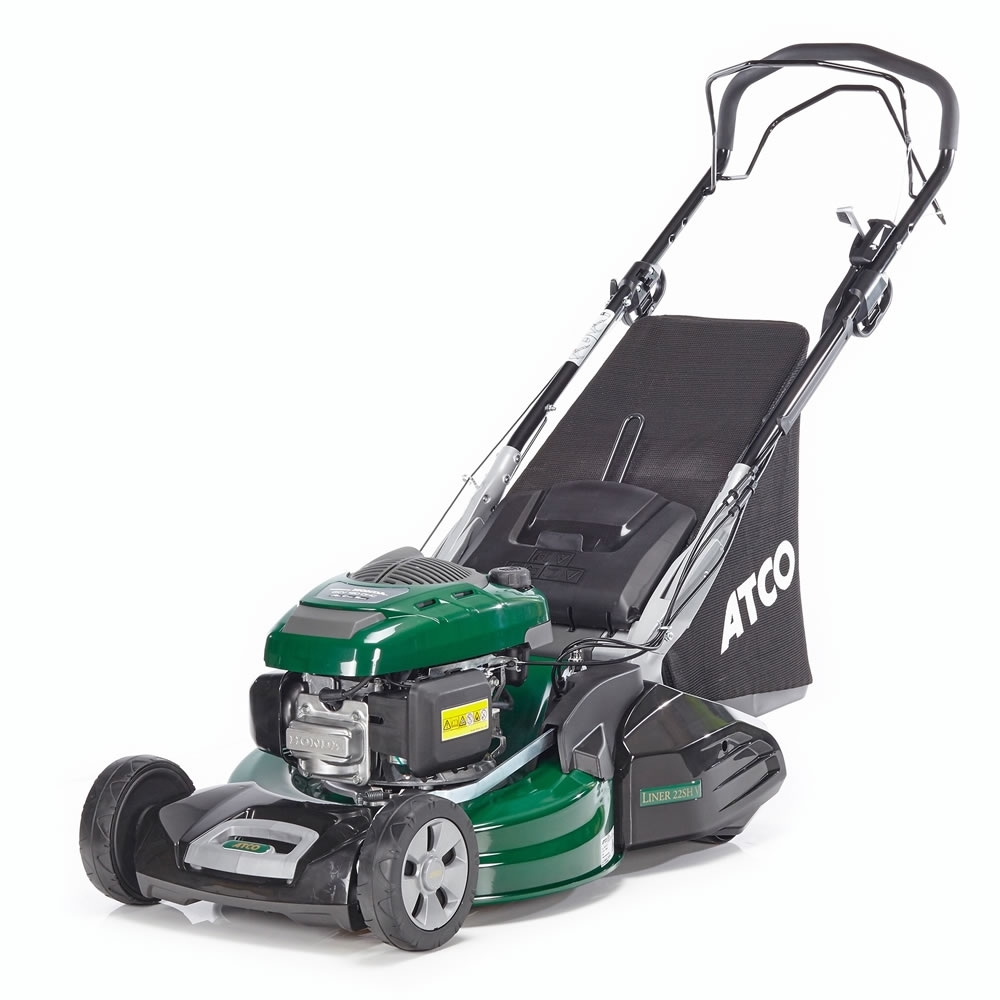

Specification: Atco LINER 22 SH V Petrol Roller Lawnmower 53cm / 167cc
* Power source - Petrol
* Power - 3.3 kW
* Engine Brand - Honda
* Engine model - GCVx170 OHV Autochoke
* Displacement - 167 cm³
* Engine rotation speed - 2900 rpm
* RPM control - Fixed rpm
* Starter - Recoil
* Fuel tank capacity - 0.95 l
* Engine Oil tank capacity - 0.4 l
* Suggested working area - 1000sqm
* Cutting width - 53 cm
* Deck material - Galvanized steel
* Cutting height adjustment - Centralized
* Cutting height positions - 8 positions
* Cutting height range - 13 - 65 mm
* Driving - Self-propelled with speed variator
* Traction - Rear-roller drive
* Speed forward - 3 to 4.9 Km/h
* Collector capacity - 80 l
* Handlebar type - Ergonomic 25 mm adj. by button + soft grip
* Wheels - 200/ROLLER grooved wheels on ball bearings
* Vibe Control System (VCS) - Yes
* Front handle - Yes
* Adjustable handlebar - Yes
* Foldable handlebar - Yes
* Washing link - Yes
* Collector type - Textile
* Guaranteed sound power level (LwA) - dB(A) - 98
* Measured sound power level dB(A) - 98
* Measured sound pressure level at operator ear dB(A) - 86
* Vibration level hand (m/s2) - 8
* Pack weight - 53.04 kg
* Product length - 1680 mm
* Product width - 560 mm
* Product height - 1100 mm
* Weight - 47 kg
Wheels 180 mm /ROLLER grooved wheels on ball bearings
Front handle Yes (bumper)
Adjustable handlebar Yes
Foldable handlebar Yes
Washing link Yes
Collector type Hybrid with warn
Vibration and noise data
Guaranteed sound power level (LwA) - dB(A) 96
Measured sound power level dB(A) 96
Measured sound pressure level at operator ear dB(A) 83
Vibration level hand (m/s2) 7.7
Overall dimensions
Pack weight 37.7 kg
Product length 1500 mm
Product width 550 mm
Product height 1120 mm
Weight 35 kg
